| Brand Name : | LEDAN |
| Model Number : | WL67K |
| Certification : | CE ISO |
| Price : | USD/SET |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 30 Sets/month |
| Delivery Time : | 20-30days |

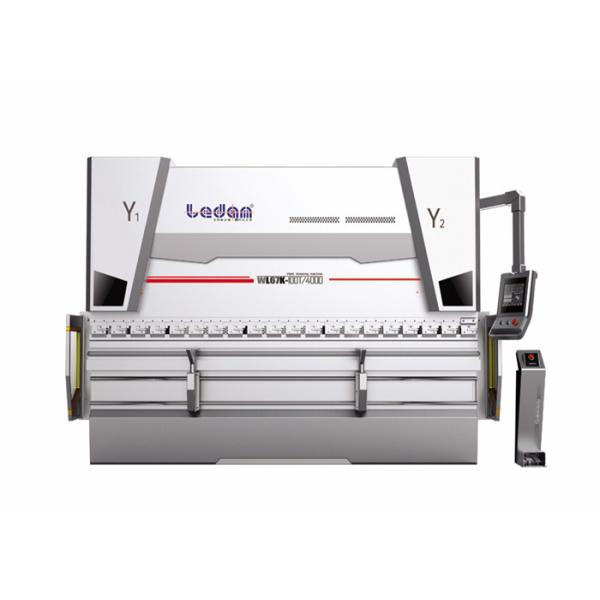

Compact CNC Press Brake Machine Precision Screw Back Gauge Transmission
Features of the CNC bending machine:
-Go on with the program for the angel directly. The machine has the
function of angle compensation.
-Grating ruler tests on time, feeds back and correct automatically.
It is closed loop control. The position accuracy of the back gauge
and the slide block is ±0.05mm.
-The upper die adopts quick clamping device, the lower die adopts
wedge deformation compensation device.
-The multi section programming function can realize multi automatic
running. Perform multi section one time, improve the production
efficiency.
-According to the requirement of the customer, we can choose the
stable compact imported hydraulic system. We can choose the ball
screw for the back gauge, synchronous transmission.

| Performance And Technical Parameter: | |
|---|---|
| Position Accuracy of the back gauge | ±0.1mm |
| Re-position Accuracy of the back gauge | ±0.03mm |
| Accuracy of the Line | ±0.75/1000mm |
| Back gauge transmission | Precision screw |
| Back gauge Drive | Servo motor |
| Worktable | Automatic compensation |
|
